  • Leading-edge technology

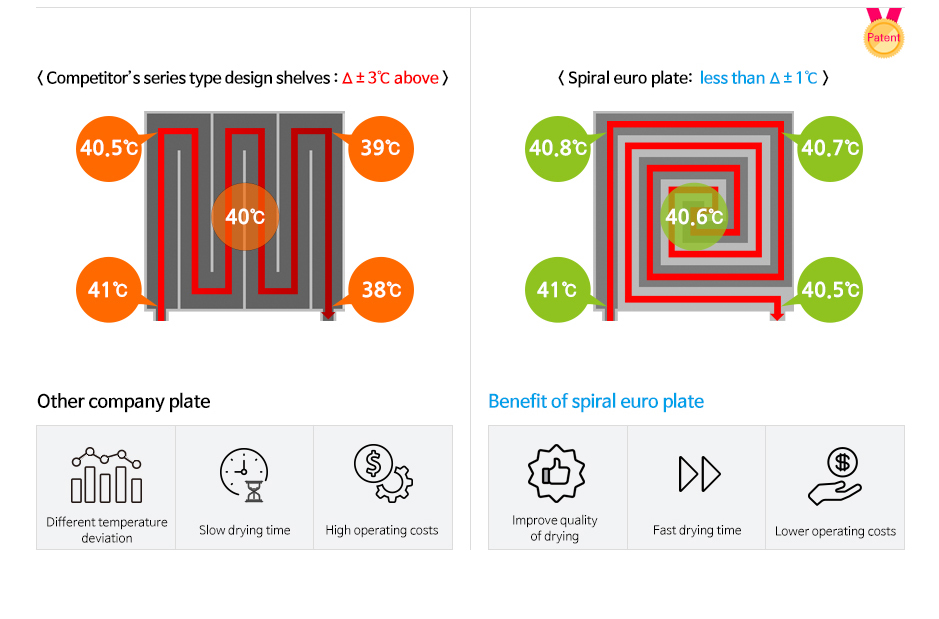

  • Spiral oil path plate

Temperature uniformity is the key factor of drying quality. Conventional series design cannot avoid heat loss (normally±2~3℃)

but our patented spiral design minimizes heat loss while gives uniformity less than ±1℃,

brings best drying quality as well as cost saving by minimal energy loss.

​



  • Quick and easy

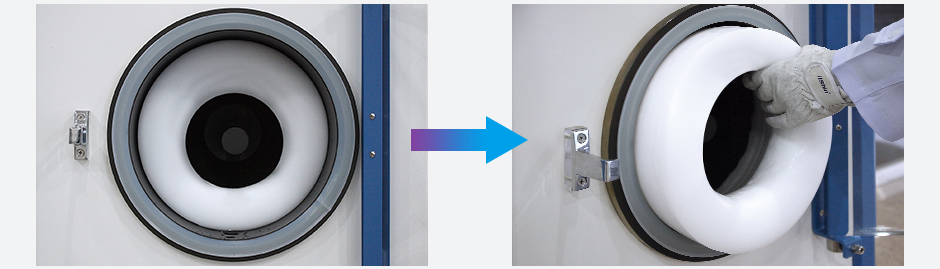

  • Defrosting system

Removal of condensed ice is necessary for continuous operation and for protection from contamination.

Condenser foams round type ice below at -80℃ and makes ice removed at once.

PTFE coating is standard feature for protection from contamination or corrosion by acid and other chemical substances.

​

​


  • GLOBAL REAL TIME CARE SERVICE

  • BLACK BOX

Blackbox helps user and manager for prompt diagnosis on any sign of malfunction during operation

by integrated technology of IOT(Internet of things) and ICT(Information and Communications Technologies).

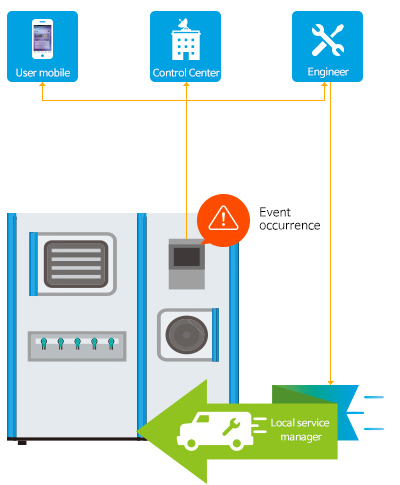

  • ▣ IoT remote monitoring service

    Internet of things technology. 24/7 monitoring service by

    manufacturer’s server as well as user’s smart phone.

    Real time diagnosis and data keeping.


    ▣ Proactive service

    Process data can be monitored all the time by smart

    phone application.

    Any incident shall be reported to authorized manager

    and service action can be instructed without visiting

    installation site.

    *App. OS: Android 2.3 (Gingerbread or latter),

    IOS 9.2 or latter


    ▣ Command room data monitoring
    - Temperature: sample, shelves, condenser, refrigeration system

    - Pressure: vacuum, chamber

    - Alarms: sensor failure, condenser overheat, over current,

    oil circulation failure, motor overheat, heater

    malfunction, condenser temperature error,

    vacuum failure, heat media circulation problem

    - General data: Process status including pre-freezing,

  • 3b0dea86a8b202e4717a1e5c9bdcf3b1_1572868429_0253.jpg

  • Convenient anytime, anywhere

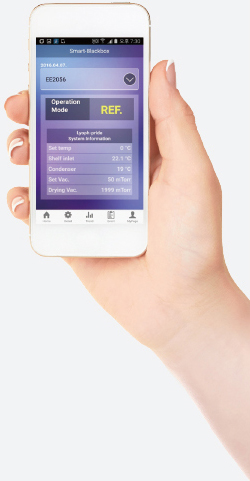

  • Mobile application

Designated application is available for real time monitoring of process history, status and events regardless of user’s location.

It is fantastic experience and convenience with aesthetic user interface.

  • 0b0484bacba82a1933570cb63f94d7e8_1570858936_258.jpg

    Main window
    General view on operation status. Current process is indicated. Process data is displayed at real time.

  • 0b0484bacba82a1933570cb63f94d7e8_1570859091_455.jpg

    Trend window
    Variation of drying process is displayed. 24 hours previous trend can be reviewed.

  • 0b0484bacba82a1933570cb63f94d7e8_1570859270_0081.jpg

    EVENT window
    Real time event is displayed for observation on any malfunction.

  • 0b0484bacba82a1933570cb63f94d7e8_1570859407_1288.jpg

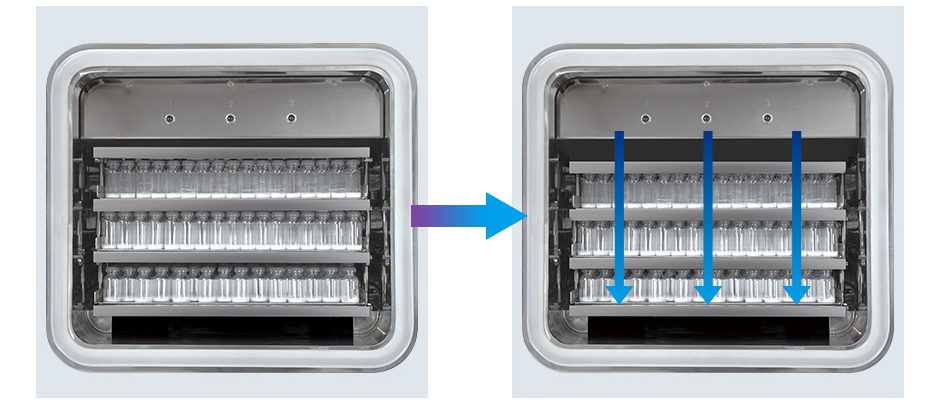

  • [Optional 1] Automatic sealing system

  • Stoppering system

​Sealing is completed under vacuum condition (0.3mBar) automatically.

- Stoppering devices are hydraulic cylinder and bellows type (anti-contamination)

- Hydraulic pressure: 70~110kgf/㎠.

​

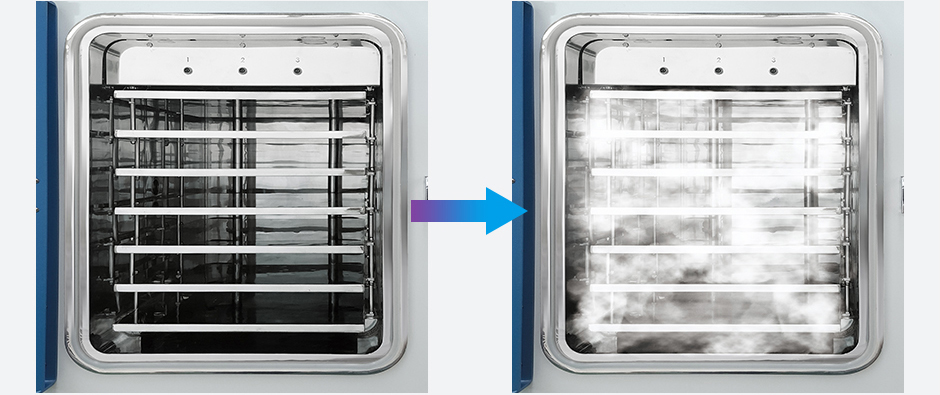

  • [Optional 2] Steam sterilization system

  • SIP(Sterilization In Place) system

Steam from PSG(Pure Steam Generation) sterilizes inside of chamber.

(Sterilizing temperature is 122℃ with more than 20 minutes, Air pocket exhaust is executed

more than 3 times and initial exhaustion is completed within an hour)

​

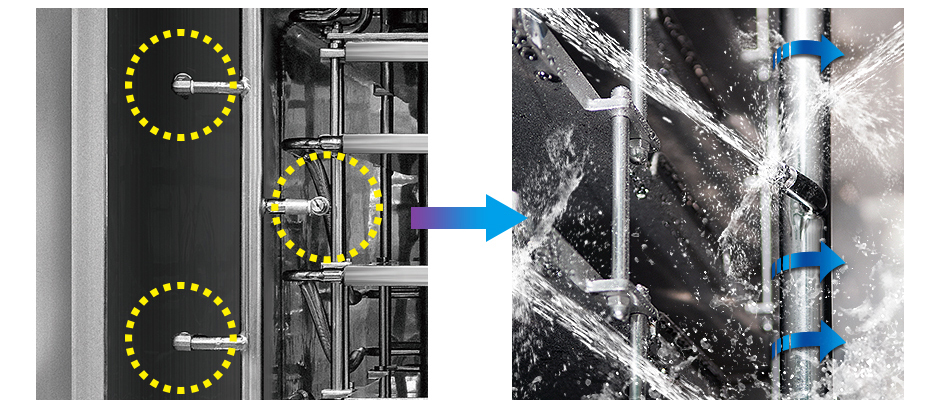

  • [Patent] [Optional 3] Automatic washing system

  • CIP(Clean In Place) system

Patented system of automatic revolution nozzles cleans inside of drying chamber by high pressure

RO water with no dead space and minimal consumption of water to lower the maintenance cost.

​
