  • Pilot scale FREEZE DRYER

  • SPECIRICATION



















































































[For Pharmaceutical industry] LP 50 LP 100 LP 200 LP 300 LP 500
Totally Ice Capacity 50 liters 100 liters 200 liters 300 liters 500 liters

Vial quantity

(based on 10ml)

 6,700 EA 13,300 EA 27,300 EA 41,000 EA 69,500 EA

Condencer

Temperature

 Below -85℃
Self Temperature -45(-55℃) to +80℃
Self Areas 3.2m²(0.4m²/EA) 6.4m²(0.8m²/EA) 13.2m²(1.2m²/EA) 19.8m²(1.8m²/EA) 33.6m²(2.5m²/EA)
Self Quantity 8 + 1 11 + 1 14 + 1
Material STS 316 (Chamber/Shelf) / Calibration service

Self Dimension

(WxDxH mm)

 500 x 800 x 18 805 x 1005 x 18 1005 x 1205 x 25 1210 x 1510 x 25 1510 x 1650 x 25

Ext. Dimension

(WxDxH mm)

 1450 x 2003 x 2140 1600 x 2415 x 2210 2970 x 2855 x 2160 3500 x 3390 x 2375 3516 x 4616 x 2347
Electrical 380/400/440/480V 3Ph 50/60Hz
Refrigeration System 7.5HP x 2EA 10HP x 2EA 30HP x 2EA 40HP x 2EA 30HP x 4EA
Vacuum Vol.(LPM) 841 1,600 4,000 6,680 14,000

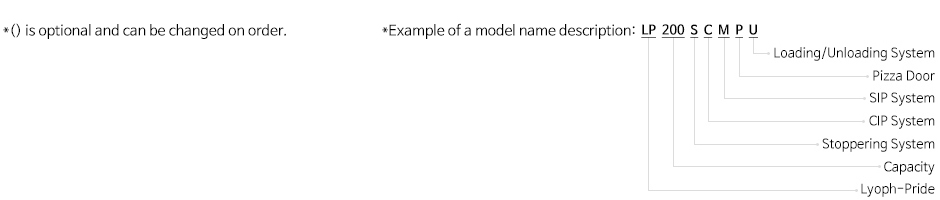

Option (1) Pizza door with automatic loading/unloading system
(2) Stoppering system
(3) CIP system
(4) SIP system
(5) Loading/Unloading system
(6) Dual-safety system
(7) lsolation system
(8) Monitoring system
(9) Validation support
