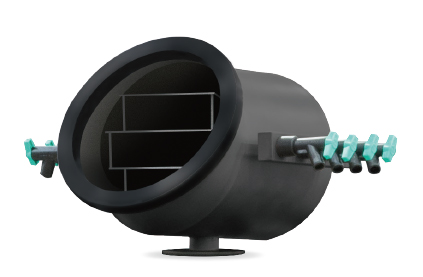

MULTI DRYING CHAMBER
Multi-purpose MDC is specially designed by ILSHIN BIOBASE for drying application with Ampoule, Bottle, Bulk-Tray, Vial, Flask and Petri dish upon customer’s need. User friendly design with 20°~ 40° observation lid and sample loading device allow full time observation of drying process. Chamber provides complete sealing and vacuum condition without locking device. User can enjoy comfortable loading environment with bottle, bulk-tray and vials by horizontal loading into the chamber.
PTFE coating guarantees life time protection against corrosion by acid or chemical substances. More than 50mm length of conduit line for evaporated steam via condenser improves efficiency of sublimation for faster process and better quality on drying result.
| Model | Discription |
|---|---|
| MDC 1208 | 8 x ½”Valves, 275(H) x 230mm(D), 304 Stainless steel, 4 Shelves |
| MDC 1208 H | MDC 1208 with heating shelves (+40℃ at ambient Temp.) |
| MDC 1208 HS | MDC 1208 H with stoppering system |

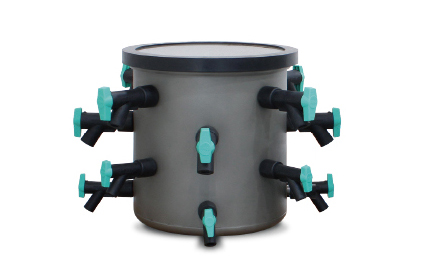

Drying Chamber
DC series supports both product shelf and flask. PTFE coating protects chamber from corrosion by acid or chemical substances. Anti acid vacuum pump is recommended for drying acid containing samples.
| Model | Discription |
|---|---|
| DC 1212 | 12 x ½” Valves 275mm(H) x 230mm(D) |
| DC 1316 | 8 x ½” and 8 x ¾” Valves 320mm(H) x 300mm(D) |
| DC 1218 | 18 x ½” Valves 320mm(H) x 300mm(D) |
Clear Drying Chamber
CDC series are optimal for bulk type shelf (3332) and available with serum bottle stoppering (3333). Acryl chamber is transparent for visual monitoring on entire drying process.
| Model | Discription |
|---|---|
| CDC 3332 | 2heated shelves 330mm(H) x 330mm Dia |
| CDC 3333 | Stoppering and 2heated shelves 330mm(H) x 330mm Dia |
Heated Drying Chamber
By use of heater plate, drying process is controlled with +40℃ temperature range. Flask drying is also available. PTFE coating protects chamber from corrosion by acid or chemical substances. Anti acid vacuum pump is recommended for drying acid containing samples.
| Model | Discription |
|---|---|
| HDC 1212 | 12 x ½” Valves, 275(H) x 230mm(D), 304 Stainless steel |
| HDC 1316 | 8 x ½” and 8 x ¾” Valves 320mm(H) x 300mm(D) with Heater function |
| HDC 1218 | 18 x ½” Valves 320mm(H) x 300mm(D) with Heater function |
Manifold Chamber
Optimal for ampoule drying. PTFE coating protects chamber from corrosion by acid or chemical substances. Anti acid vacuum pump is recommended for drying acid containing samples.
| Model | Discription |
|---|---|
| MC 1224 | 12 x ½” Valves 275mm (H) x 230mm (D) with Heater function |
| MC 3412 | 12 x ¾” Valves |
| MC 1324 | 12 x ½” and 12 x ¾” Valves |
| MC 1204 | 4 x ½” Valves |
Product Heater
Heating device for HDC/CDC 3333. Control up to +40℃.
| Model | Discription |
|---|---|
| PS1212 | 3 Shelves for DC 1212 |
| PS1316 | 3 Shelves for DC 1316/1218 |
| PHS1212 | 3 Heated Shelves for DC 1212 |
| PH1316 | 3 Heated Shelves for DC 1316/1218 |

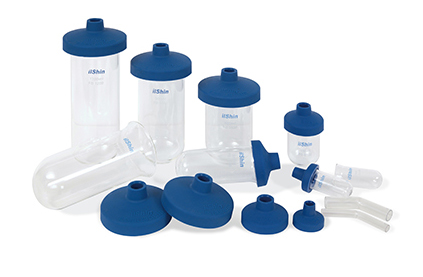

Complete Flask
Specifications of Flask
| Size | Complete | Bottom | Top | Diameter | Bottom H/I.D. |
|---|---|---|---|---|---|
| 40ml | CF0040 | FB0040 | FT0034 | 1/2" | 76 x 34(mm) |
| 80ml | CF0080 | FB0080 | 115 x 34(mm) | ||
| 120ml | CF0120 | FB0120 | FT0059 | 3/4" | 69 x 60(mm) |
| 150ml | CF0150 | FB0150 | 85 x 60(mm) | ||
| 300ml | CF0300 | FB0300 | 145 x 60(mm) | ||
| 600ml | CF0600 | FB0600 | FT0090 | 135 x 90(mm) | |
| 900ml | CF0900 | FB0900 | 190 x 90(mm) | ||
| 1200ml | CF1200 | FB1200 | 240 x 90(mm) |

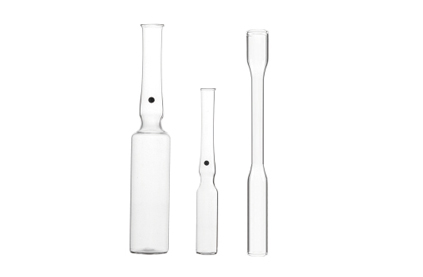

Ampules
Ampules
| Size | Straight | Flat Bottom |
|---|---|---|
| 1ml | AST01 | AFB01 |
| 2ml | AFB02 | |
| 4ml | AST04 | |
| 5ml | AFB05 | |
| 10ml | AFB10 | |
| 25ml | AFB20 | |
| 50ml | AFB50 |

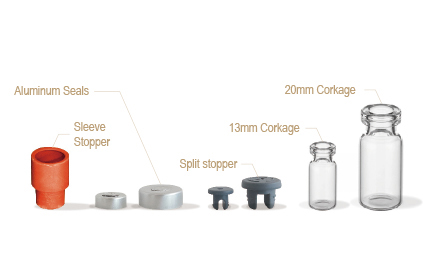

Serum Bottles
Serum Bottles
| Size | Sleeve Stoppers | Aluminum Seals | Split Stopper | 13mm Corkage | 20mm Corkage |
|---|---|---|---|---|---|
| 2ml | ALS-13 | SPS-13 | SB0002 | ||
| 3ml | SB0002 | ||||
| 5ml | SLS-20 | ALS-20 | SPS-20 | SB0005 | |
| 10ml | SB0010 | ||||
| 20ml | SB0020 | ||||
| 30ml | SB0030 | ||||
| 50ml | SB0050 | ||||
| 100ml | SB0100 |
Vacuum Pump
High quality, corrosion resistant materials Advanced oil lubrication-ensures reliable running even at high gas loads Proven oil and air suck-back protection Complete range of easy-to-fit accessories to protect both pumps and the environment Low noise levels and minimum vibration Direct drive-built to exacting safety standards Opposed two-vane design helps prevent blades sticking Easy maintenance with effective international service back-up
| Model | Super Deluxe | Anti-Corrosion | |||||
|---|---|---|---|---|---|---|---|
| ISL-6 | ISL-136 | ISL-201 | ISLA-045 | ISLA-115 | ISLA-165 | ISLA-318 | |
| Capacity | 100L/Min | 196L/Min | 283L/Min | 45L/Min | 115L/Min | 165L/Min | 318L/Min |
| Type | Direct Driven | ||||||
| Ult-Pressure | 1.5 x 10-3 Torr | 4 x 10-4 mbar | |||||
| Gas Ballast | Equipped with Vacuum Pumps | ||||||

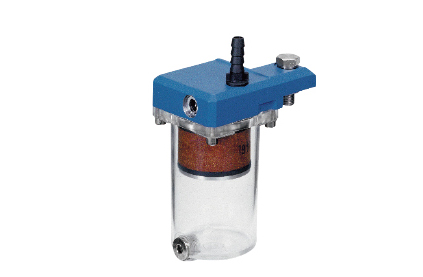

Soda Acid Trap
Secondary trap connects in series with freeze dry system and vacuum pump to prevent migration of corrosive chemicals into pump interior. Clear acrylonitrile body allows visual check of color indicating media.
.
Pump Exhaust Filter
Disposable filter removes all visible oil mist from vacuum pump exhaust. May be exhausted into work area without duct. Includes filter assembly, one set of filter tubes mesh pad and back pressure gauge, 0-15 psig. Life approximately 2500 hours at 10 microns vacuum.
.

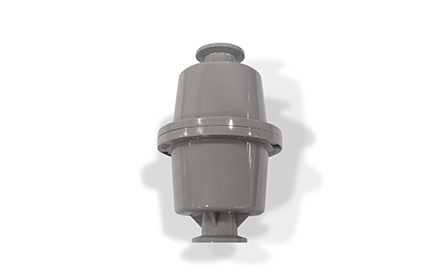

Oil Mist Filter
The oil mist filter can filtrate oil mist effectively which discharged by vacuum pumps. Reducing environment pollution significantly and reducing the oil consumption effectively.
.

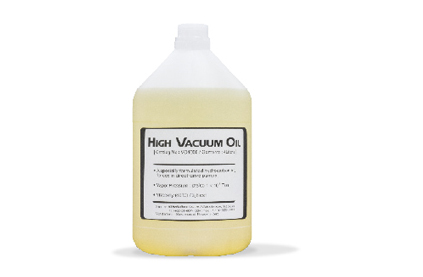

Vacuum Oil
a low vapor pressure and high lubricity. Assures high vacuum pump performance in standard rotary vane vacuum pumps.
.
Vacuum Grease
Silicone-based compound used as sealant & lubricant for vacuum systems. VG5400 Grease is recommended for vacuums reaching between 1 x 10-5 and 1 x 10-6 mm Hg. It is recommended that the grease be preconditioned under vacuum and temperature until these limits are reached.
.
MDC Tray
MDC Tray
| Model | Discription |
|---|---|
| TR-M165 | STS304(Stainless steel), 165(W) x 270(D) x 30(H) mm, 0.6T |
| TR-M235 | STS304(Stainless steel), 235(W) x 270(D) x 30(H) mm, 0.6T |
Valves
ilShinBioBase valve specially designed considering safety of sample itself after drying. It is consisted of "backfilling system" which protects sample from air pollution through vent input in Neoprene body. Valve body is made of Neoprene which does not change with heat in case of ampoule sealing with sealing torch, so it can be used for a long time with safety.
There are 1/2" and 3/4" standards and ampoule valve without ampoule adapter is prepared. Valve Size Complete
.
